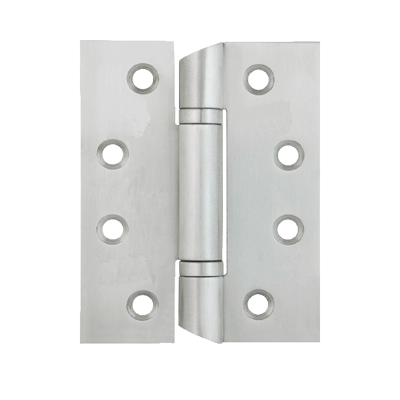

Full Mortise Hospital Tip Hinge

Description

Specification advice:

• Two Ball bearing Hospital Tip butt hinges standard weight
Template drill.
• Exceeds BS EN 1935 grade 13 (Severe Duty 120 kg Door
Mass) equivalent to BS7352: 1990.Class 9.
Specification advice:
• Tested in accordance with the European specification EN
1935 Grade 13.
• Manufactured from Stainless Steel Grade 304.
• Packed with stainless steel wood screws.
• Machine screws available on request for metal doors
frames (MS).
• Also available in Grade 316 upon special request.

Benefits
High performance Hospital Tip Ball bearing butt hinges
are suitable for all types of internal and external applications.
When used on fire doors, intumescent pack need to be
applied for higher fire rating on wooden doors.
Fire Resistant: Included in as successful fire test to BS
EN Part 1:2000 and BS EN 1363-1 Part 1:1999. Assessed
for use on 30 mins., 60 mins. & 90 mins. fire doors. Door
Opening angle 180°.
