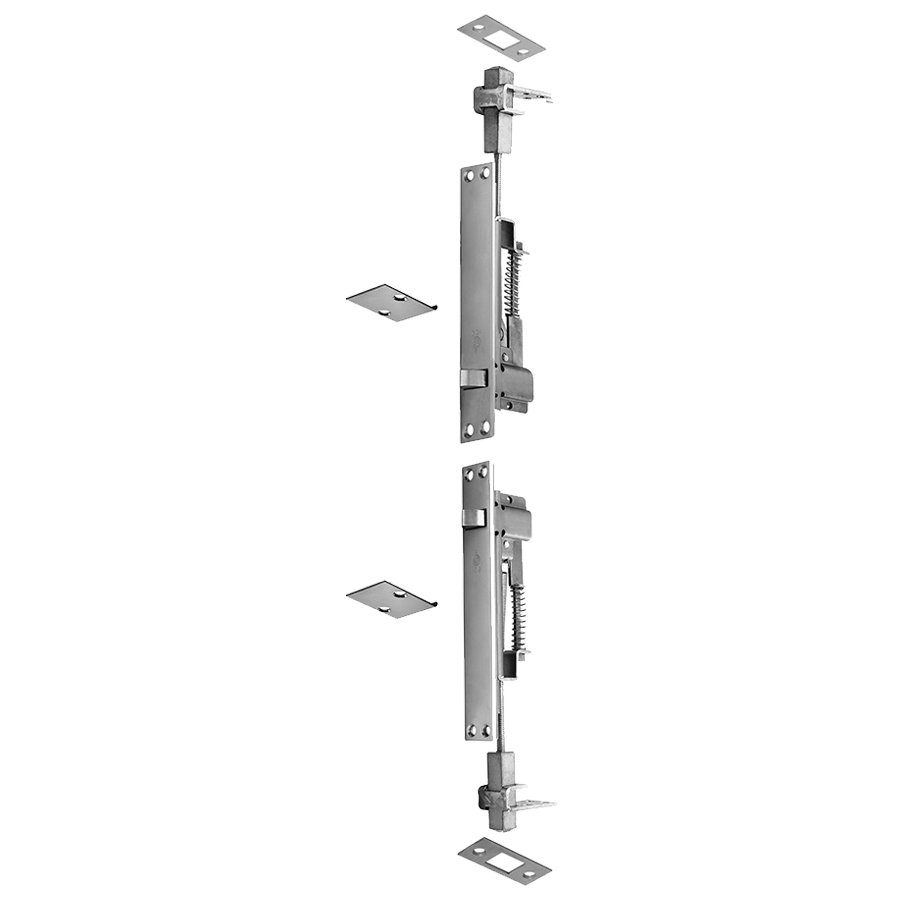

RM.AFB.4282

Description

Standard Features

• For metal doors
• Non-handed
• Fully automatic–opening active door retracts top and bottom bolts
• Low closing force
• Override feature prevents damage to doors or bolts if bolt heads are blocked from entering strikes
• Bolt head rods are adjustable up to 1 1/2″
• Thermal lock automatically locks the inactive door under high heat conditions due to fire
• UL Listed

Specifications

MATERIAL: Brass, Stainless Steel

Fastners

       • 20 ea. #8 x 3/4″ Flat Head Combo Screws

       • 2 ea. #6 – 8 Plastic Anchors

Finishes

• US3/605       Bright brass, clear coated
• US4/606       Satin brass, clear coated
• US10/612      Satin bronze, clear coated
• US10B/613   Dark oxidized satin bronze, oil rubbed finish
• US26/625     Polished chrome plated
• US26D/626  Satin chrome plated
• US32D/630    Satin stainless steel
