Description

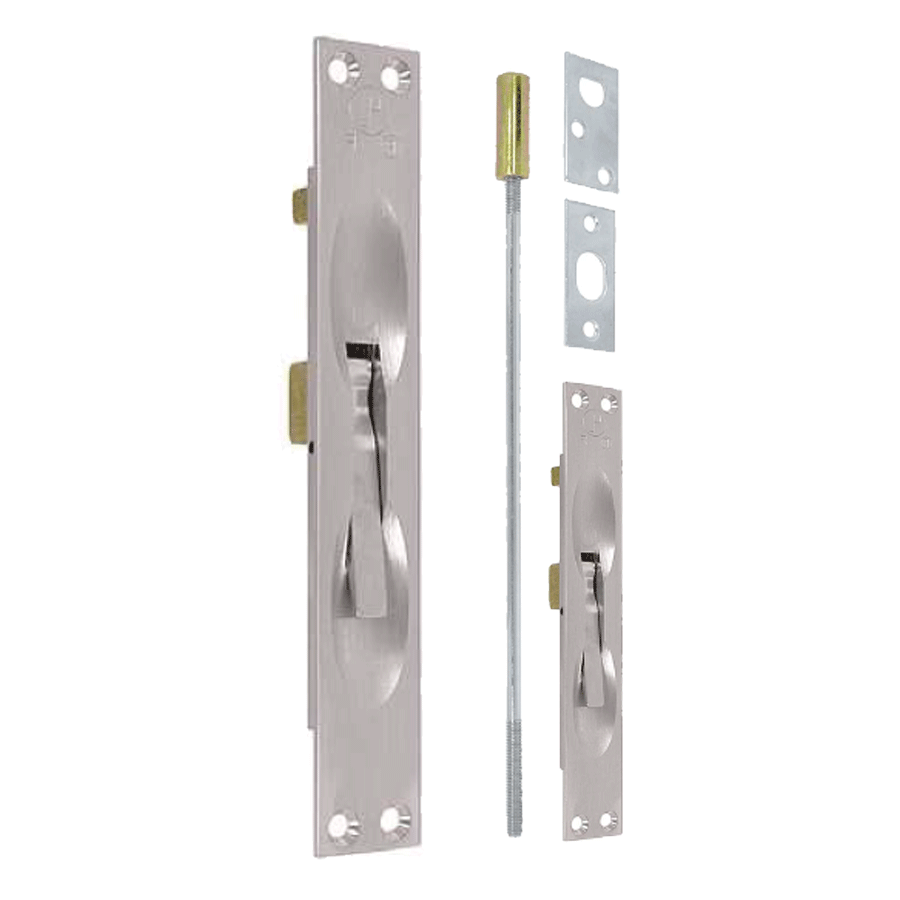

• Flush bolt used for securing the in-active leaf of a pair of metal doors.
• Flush bolt shall have spring loaded lever to project or retract the bolts.
• Standard installation requires two flush bolt, mortise in to the top and bottom of the doors for added security and to prevent the door from warping.
• Suitable to use on single swing, sliding or double acting metal doors.
• Supplied with fixing materials for timber or doors
Finish: Brass, satin chrome US26D finish.
Faceplate 25.4mm wide x 171.4mm high.
23.8mm x 57.1mm.
25.4mm x 50.8mm.
305mm steel rod measured from centre of face to bolt end, retracted. 19mm bolt throw, 38mm adjustable bolt head.
Fits ANSI A115 door and frame preparation.
Flat face only for use on square edged doors.
Supplied with rod, guide bracket, strike plate and 8 x No 8 x ¾ FH combo screws. Corrosion Resistance.
Packed 2 bolts per box with rods and fittings.
