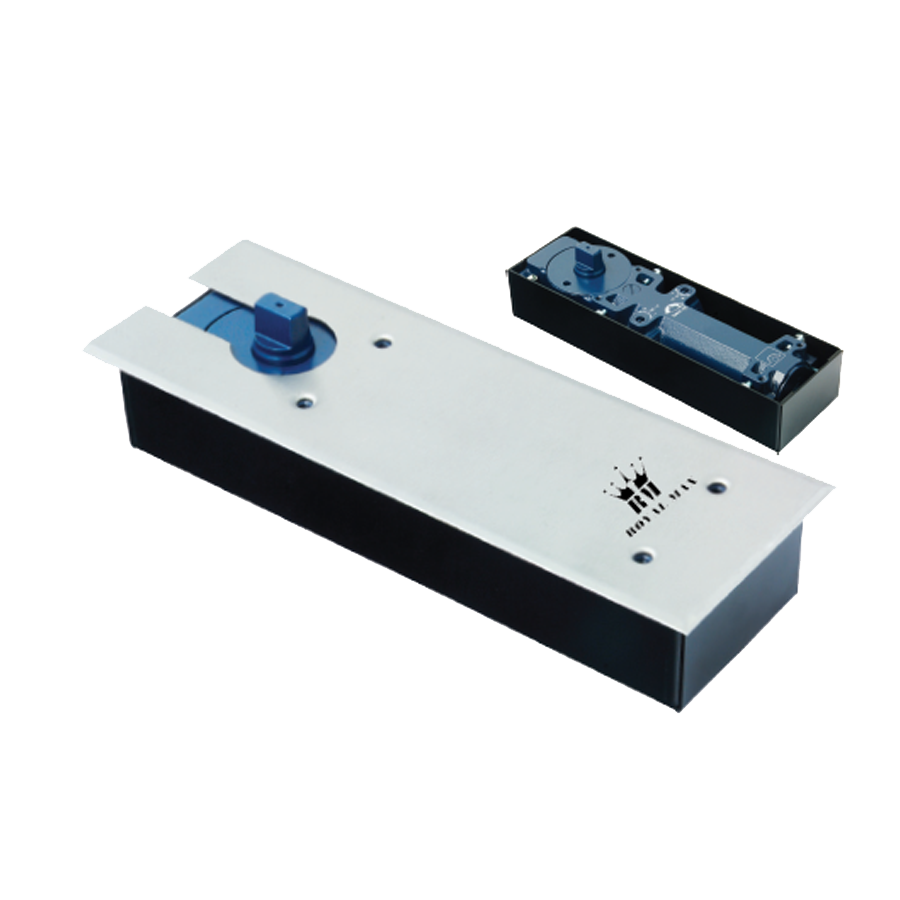

The Heavy Duty Slim Body floor spring for single/double action doors

Royal Max (UK) RM-BFS-846 floor spring successfully tested to UL & CE marked offers outstanding value for wide range of
accessories to accommodate various installation situations.
Floor spring offset hung and center hung installed in the concrete beneath the surface of the floor for total concealment. Royal Max (UK) RM-BFS-846 comes complete with a bottom arm, top pivot, cement case and floor plate.
Easy installation for right and left hand single-action and double action doors.
Easy to adapt individual requirements with dual valve control 130°~10° and 10°-0°. Interchangeable spindle inserts available to suit site conditions.
Smooth closing ensures easy door operation Optional integrated single point hold-open at 90°.

Standard and optional functions
closing ranges
The floor spring has two controlled closing ranges:
Valve 1: 130° – 0° sweep
Valve 2: Increases the closing speed between 130° and 10°.
Hold-open
With optional integrated single-point hold-open at 90°.

Applications and Installation
Royal Max (UK) RM-BFS-840 practical clamp fixing system of the ensures a secure and high-precision fit in the cement box.

Spindle Inserts
The floor clearance can be adjusted as required by simply replacing the insertion spindle with another size. Special spindle designs available on request – e.g. wide flats with 3° offset.
