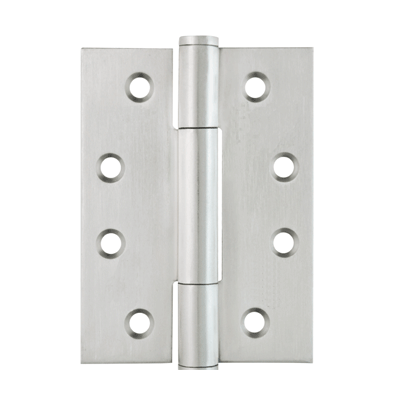

Concealed Bearing Hinge

Description

Specification advice:

Triple knuckle anti-friction Concealed bearing, button tipped
smoother action than ball bearing and maintenance free.
Exceeds BS EN 1935 grade 13 (Severe Duty 120 kg Door
Mass) equivalent to BS7352: 1990.Class 9.
• Tested in accordance with the European specification EN
1935 Grade 13.
• Manufactured from Stainless Steel Grade 304.
• Packed with stainless steel wood screws.
• Machine screws available on request for metal door frames
(MS).

• Also available in Grade 316 upon special request

High performance anti-friction concealed bearing hinges
are suitable for all types of internal and external applications.
When used on fire doors, intumescent pack need to be
applied for higher fire rating on wooden doors.
Fire Resistant: Included in as successful fire test to BS EN
Part 1:2000. Assessed for use on 30 mins., 60 mins. & 90
mins. fire doors. Door Opening angle 180°.
