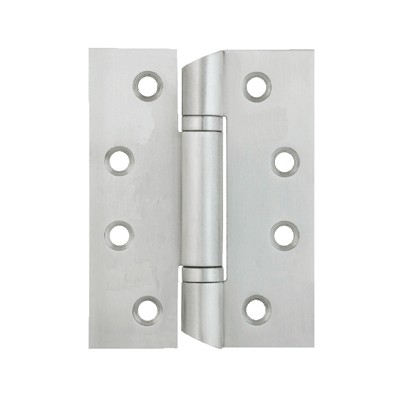

Full Mortise Hinge (Fire Rated)

Description

Specification advice:

• Two & Four Ball bearing butt hinges standard weight,
Template drill.
• Exceeds BS EN 1935 grade 13 (Severe Duty 120 kg Door
Mass) equivalent to BS7352: 1990.Class 9.
• Tested in accordance with the new European specification
EN 1935 Grade 13.
• Manufactured from Stainless Steel Grade 304.
• Packed with stainless steel wood screws.
• Machine screws available on request for metal doors frames
(MS).
• Also available in Grade 316 upon special request.

Benefits

•
•
High performance Ball bearing butt hinges are suitable for
all types of internal and external applications. When used on
fire doors, intumescent pack need to be applied for higher
fire rating on wooden doors.
Fire Resistant: Included in as successful fire test to BS
EN Part 1:2000 and BS EN 1363-1 Part 1:1999. Assessed
for use on 30 mins., 60 mins. & 90 mins. fire doors. Door
Opening angle 180°.
