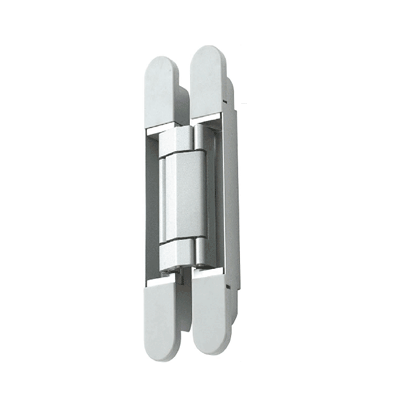

Concealed/Invisible 3D Adjustable Hinges DL-030D

Description

Technical Data:
• Material: Zinc Alloy
• Finish: PSS, SSS, MAT. CHR, SAT. NKL, MAT. BLK,
MAT. GOLD, PVD GOLD, MAB
• Installation: wood tapping screws, St. Steel screws
(optional)
• Max.door weight with 2 with 2 hinges : 40kg
• Min.door thickness : 35mm
• Max.door width : 850mm
• Slim design for thin door : 21.5mm
• Suitable for Wooden Doors
• Adjustable after installation
Adjustments
• Up & Down (Vertical) : ± 3mm
• Left & Right (Horizontal) : ± 2mm
• Front & Rear Depth : ± 1mm
• Opening Angle : 180˚
Application
Completely concealed for flush door with wood
steel or aluminum frame
